Stand Up Bag Packing 2.5kw Automatic Premade Bag Packing Machine
Specifications:
| Name | CX8-200 premade bag packing machine |
| Station | 8 Stations |
| Bag material | Laminated film(including aluminum foil film) ,PP,PE and etc. |
| Bag size | W:100-200mm L:100-300mm |
| Speed | 50-60 bags/min |
| Weight | 1400KGS |
| Warranty | 12 months warranty |
| Packing | Wooden case |
Safety and Hygiene:
1. No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.
2. Machine alarm and stop when the inadequate air pressure.
3. Safety guards with safety-switches, machine alarm and stop when the safety guards are
4. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
5. Imported engineering plastic bearings, no need to oil, no contamination.
6. Oil-free vacuum pump, avoid the pollution of the production environmental.
Applications:
1. The parts of machine which contact with materials and bags accords with food hygiene requirements of the materials processing, it ensures food hygiene and safety.
2. The production line is suitable for packaging liquid, thick liquid, solid materials,and powder granular materials,such as soy sauce, fruit juice,seasoning,pesticides, candy,pet food,nuts,all kinds of granular, packed in bags.
3. It can pack a variety of solid materials, liquids, body butter, powder, granular and other materials with different feeders.
4. Many kinds of bags can be used in the machine, such as multilayer films, single PE, PP and other pre-made bags, paper bags can be applied.
Packaging Process:

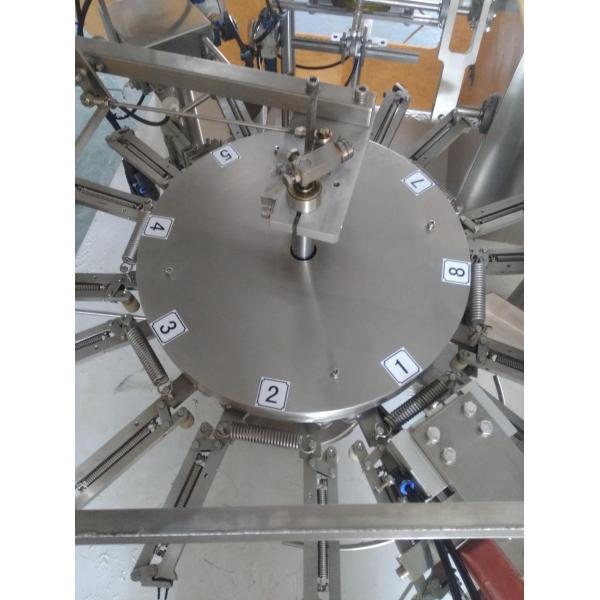

Station 1 Bag dispensing (Bag feeding)
Feed many pouches or bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.
Station 2 Coding (Date Printing)
Ribbon printer, Ink-jet printer for optional
Station 3 Bag Opening
Using air to open the bag, and an opening detection device inserts into the
opened bag to expanding it and detect if it is open or not.
Station 4 bag open
Open the bag
Station 5 Filling
There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.
No open no filling no sealing
Station 6 Heat sealing 1
To seal the bag with a couple of heat sealing air bar
Station 7 Heat sealing 2
Second sealing for sealing stronger
Station 8 Forming and product output
To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically. (the sealing pattern with net or straight lines for your option)
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
